Jaw Crusher


Max. feeding size:200-1200mm.
Capacity:5-1600tph.
Applicable materials:pebbles, granite, basalt, limestone, quartzite, construction waste, iron ore, gold ore, etc..

Get a Quote

Introduction

Jaw crusher(Blake Jaw Crusher) can be used in coarse crushing, medium crushing and fine crushing of raw materials. The working method of the jaw crusher machine is laminating crushing and it has advantages of high crushing ratio, uniform particle size, simple structure, reliable operation and easy maintenance, etc. The jaw crusher can break materials whose compressive strength does not exceed 320 MPa and its maximum feeding size is up to 1200mm.


1.High capacity and low energy consumption.
2.Optimized design making the bearing a seven-time longer life.
3.Reasonable overall structure reducing the fault rate effectively.
4.Safe and reliable boiled oil lubrication system making easy maintenance.

Working Principle

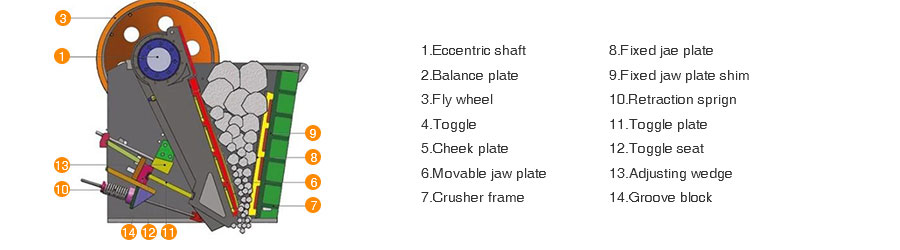

The jaw crusher is mainly composed of tie bar, spring, adjusting pad, adjusting seat, toggle plate, eccentric shaft, movable jaw plate, fixed wedge of movable jaw plate, side fender, fixed jaw plate, frame etc. The belt and pulley are driven by the motor and the movable jaw plate moves in a flat plane by eccentric shaft. When the movable jaw plate rises, the angle between the movable jaw plate and the toggle plate becomes larger and the movable jaw plate close to the fixed jaw plate to squeeze the materials. When the movable jaw plate downs, the angle between the movable jaw plate and the toggle plate becomes smaller and the movable jaw plate lefts the fixed jaw plate through the function of tie rod spring to discharge the broken materials. With the continuous rotating of the motor, the movable jaw plate make periodically movement, which realize continuous production.

Parameter

Please strictly refer to the product technical parameters for work. specifications are subject to change without notice. Please refer to the actual data of machine.

Model Feeding opening(mm) Max. feeding size  (mm) Adjustable discharge opening (mm)  Capacity  (tph) Power  (kW) Weight  (t)
PE-250x400 250x400 210 20-80 5--20 15 2.8
PE-400x600 400x600 340 40-100 16-60 30 7
PE-500x750 500x750 425 50-100 40-110 55 12
PE-600x900 600x900 500 65-160 90-180 55 17
PE-750x1060 750x1060 630 80-140   110-320   110 29
PE-900x1200 900x1200 780 195-280 220-450 110-132 51
PE-1200x1500 1200x1500 1020 150-300 400-800 160-220 100.9
PE-1000x1200 1000x1200 850 195-280 280-550 110-132 51
PEX-150x750 150x750 120 18-48 8--25 15 3.5
PEX-250x1000 250x1000 210 25-60 16-52 30-37 6.5
PEX-250x1200 250x1200 210 25-60 20-61 37-45 8.52
PEX-300x1300 300x1300 250 20-90 10-65 75 13.5

Note:The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

CFTC is one of the most reliable Jaw Crusher manufacturers in China with many years of experience in Jaw Crusher production . We can supply a complete set of Stone Crusher with highest quality. Our products have been exported to Kenya ,Ethiopia, Zambia, Tanzania, Saudi Arabia,Sri Lanka, Egypt ,Pakistan ,Vietnam ,Indonesia, the Philippines, SouthAfrica and other countries . If you have this need or want to get the Jaw Crusher price , please contact us or send email to sales@china-cfc.cc
