Antimon processing plant

The content of antimony ore is much greater than gangue, thererfore, the beneficiation of antimony ore apply the gravity and flotation..

Part I

Jaw crusher + Fine jaw crusher

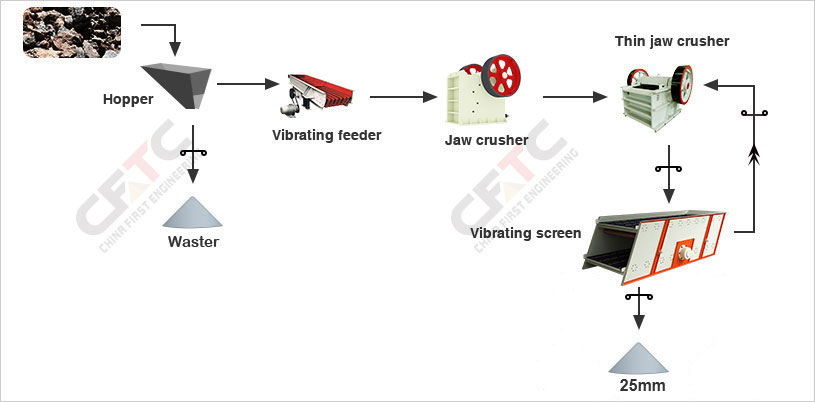

The crushing of antimony apply the process of jaw crusher & fine jaw crusher. Firstly, the antimony ore are fed into the vibrating feeder by hopper, then vibrating feeder evenly transport the antimony ore to jaw crusher for primary crush. Secondly, the coarse antimony are conveyed to the fine jaw crusher for secondary crush. Finally, the materials will be sieved by the circular vibrating screen. After screening, the qualified materials will be transported to the product area, and the oversize materials return to the fine jaw crusher for further crushing.







Part II

Antimony Mineral Processing

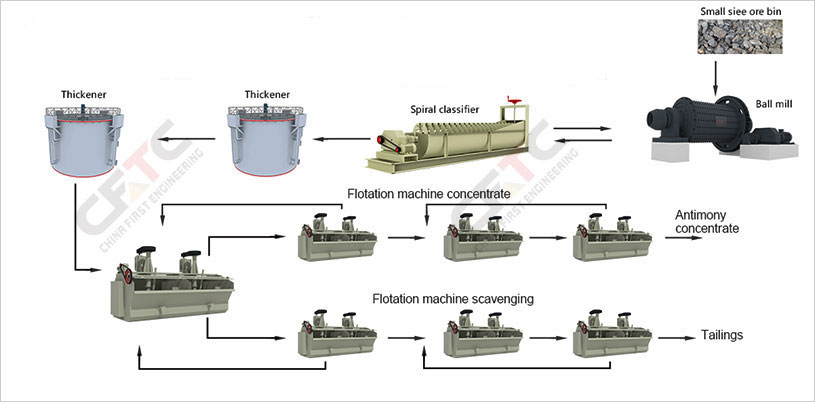

The antimony beneficiation processes is as follows: ball mill(gring antimony) ---> spiral sand washer (washing)---> mixing tank (mixing)---> flotation cell ---> thickener(primary concentration) ---> dryer (dehydrating) ---> antimony concentrate After crushing, grinding, magnetic separation, flotation, gravity and other procedures, concentrate will be get from t antimony ore. This method has the characteristics of high efficiency, energy saving and environmental protection.
