CS Cone Crusher


Max. feeding size:30-400mm.
Capacity:10-2000tph.
Applicable materials:granite, limestone, quartz,barite, marble, talcum, calcite, coal, gypsum, iron ore, gold ore, copper ore, etc..

Get a Quote

Introduction

Symons cone crusher is developed based on PY series spring cone crusher. Compared to PY series spring cone crusher, Symons cone crusher has features of reliable structure, high production efficiency, easy adjustment, economic usage, etc. Symons cone crusher is also equipped with an overload protection device which can allow metal foreign objects to pass through the crushing cavity without harming the machine. Besides, the Symons cone crusher adopts grease seal to isolate the stone powder from the lubricant, ensuring reliable operation.Symons cone crusher is widely used in metal and non-metal mines, cement plant, construction, sandstone metallurgy and other industries.

Concave Liners&Mantle Wear
Spring
Consignment


1. Muti-cylinder crushing cavity type makes it flexible application and strong adaptability;
2. Easy operation reduces downtime and power consumption;
3. Reasonable parts selection and structural design brings about long service life;
4. Lamination crushing makes uniform product particle size and less needle flakes;
5.Hydraulic cavity cleaning system makes easy cavity cleaning and reduces downtime.

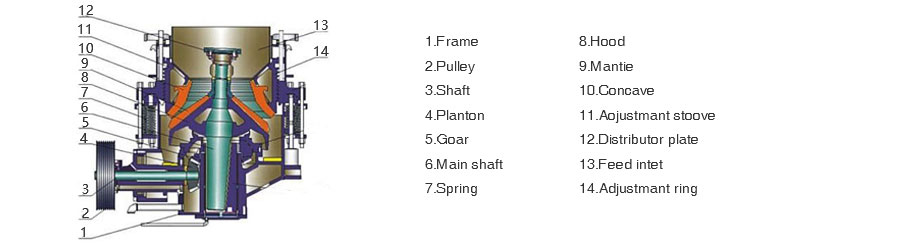

Working Principle

When the Symons cone crusher works, the eccentric sleeve rotates driven by the motor through the triangle belt, the large pulley, the transmission shaft, the small bevel gear, and the large bevel gear. The axis of the cone crusher rotates and moves under the force of the eccentric shaft sleeve, which makes the crushing wall sometimes close to and sometimes away from the rolling mortar wall, so that the material is impacted and squeezed in the annular crushing cavity formed by the movable cone and the fixed cone. After several times of squeezing, impacting and bending, the material is crushed to the required particle size and discharged through the lower part.

Parameter

Please strictly refer to the product technical parameters for work. specifications are subject to change without notice. Please refer to the actual data of machine.

Specification  Model Cavity type Max. diameter  of
moving cone (mm)
Discharge  opening
(mm)
Max. feeding size
(mm)
Capacity
(tph)
2'FT PSGB-0607 F 600 6-38 60 16-50
2'FT PSGB-0609 M 600 10-38 80 18-65
2'FT PSGB-0611 C 600 13-38 90 22-70
2'FT PSGD-0603 F 600 3.0-13 30 9-35
2'FT PSGD-0605 C 600 5.0-16 40 22-70
3'FT PSGB-0910 F 900 9.0-22 85 49-91
3'FT PSGB-0917 C 900 13-38 150 59-163
3'FT PSGB-0918 EC 900 25-38 150 118-163
3'FT PSGD-0904 F 900 3.0-13 35 27-90
3'FT PSGD-0906 M 900 3.0-16 65 27-100
3'FT PSGD-0907 C 900 6.0-19 85 59-129
4.25'FT PSGB-1324 C 1295 19-51 205 172-349
4.25'FT PSGB-1325 EC 1295 25-51 220 236-358
4.25'FT PSGD-1306 F 1295 3.0-16 54 36-163
4.25'FT PSGD-1308 M 1295 6.0-19 76 82-163
4.25'FT PSGD-1310 C 1295 8.0-25 89 109-227
4.25'FT PSGD-1313 EC 1295 16-25 113 209-236
5.5'FT PSGB-1620 F 1676 16-38 178 181-327
5.5'FT PSGB-1624 M 1676 22-51 205 258-417
5.5'FT PSGB-1626 C 1676 25-64 228 299-635
5.5'FT PSGB-1636 EC 1676 38-64 313 431-630
5.5'FT PSGD-1607 F 1676 5.0-13 60 90-209
5.5'FT PSGD-1608 M 1676 6.0-19 76 136-281
5.5'FT PSGD-1613 C 1676 10.0-25 113 190-336
5.5'FT PSGD-1614 EC 1676 13-25 113 253-336
7'FT PSGB-2127 F 2134 19-38 236 544-1034
7'FT PSGB-2133 M 2134 25-51 284 862-1424
7'FT PSGB-2136 C 2134 31-64 314 1125-1814
7'FT PSGB-2146 EC 2134 38-64 391 1252-1941

Note:The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

CFTC is one of the most reliable CS Cone Crusher manufacturers in China with many years of experience in CS Cone Crusher production . We can supply a complete set of Stone Crusher with highest quality. Our products have been exported to Kenya ,Ethiopia, Zambia, Tanzania, Saudi Arabia,Sri Lanka, Egypt ,Pakistan ,Vietnam ,Indonesia, the Philippines, SouthAfrica and other countries . If you have this need or want to get the CS Cone Crusher price , please contact us or send email to sales@china-cfc.cc
